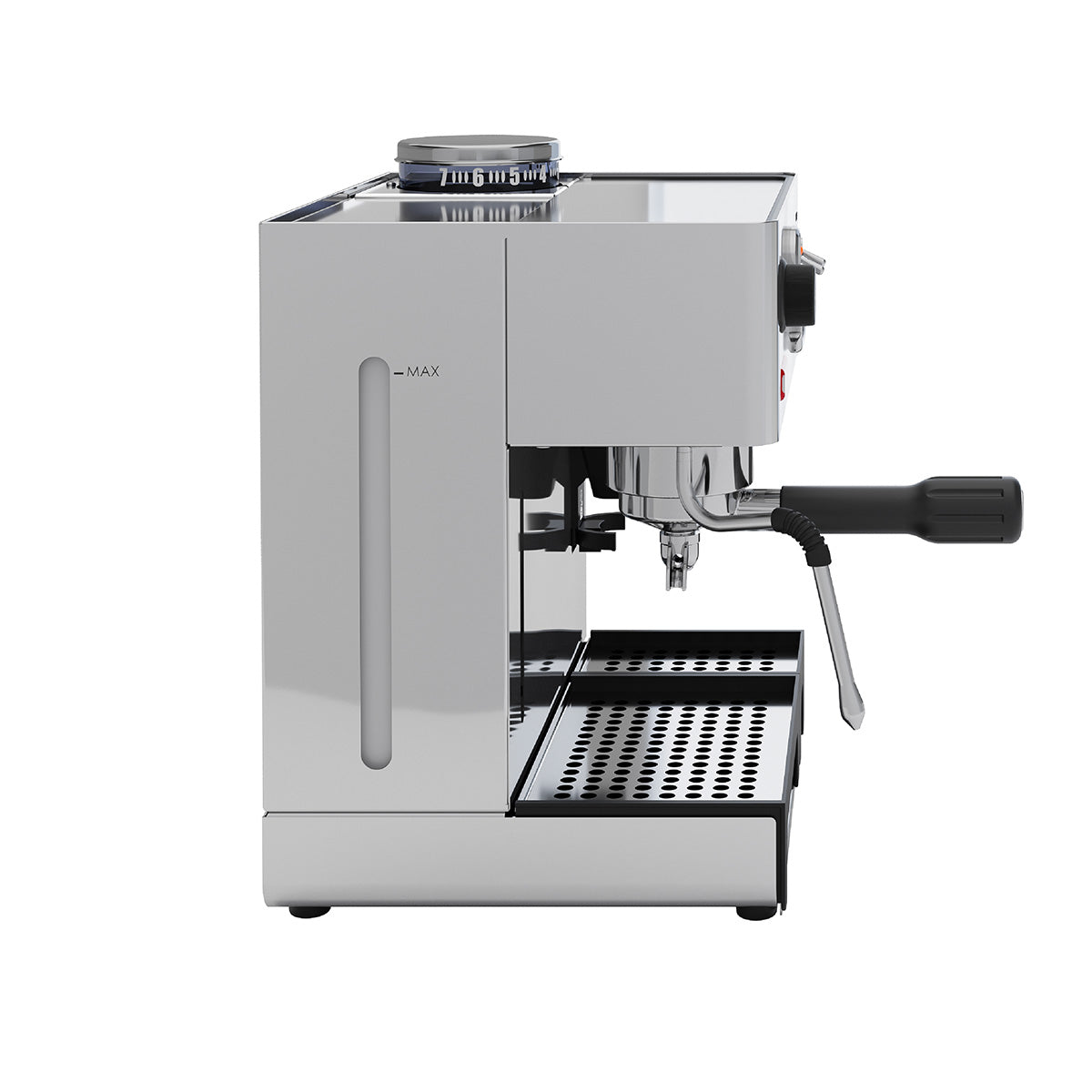

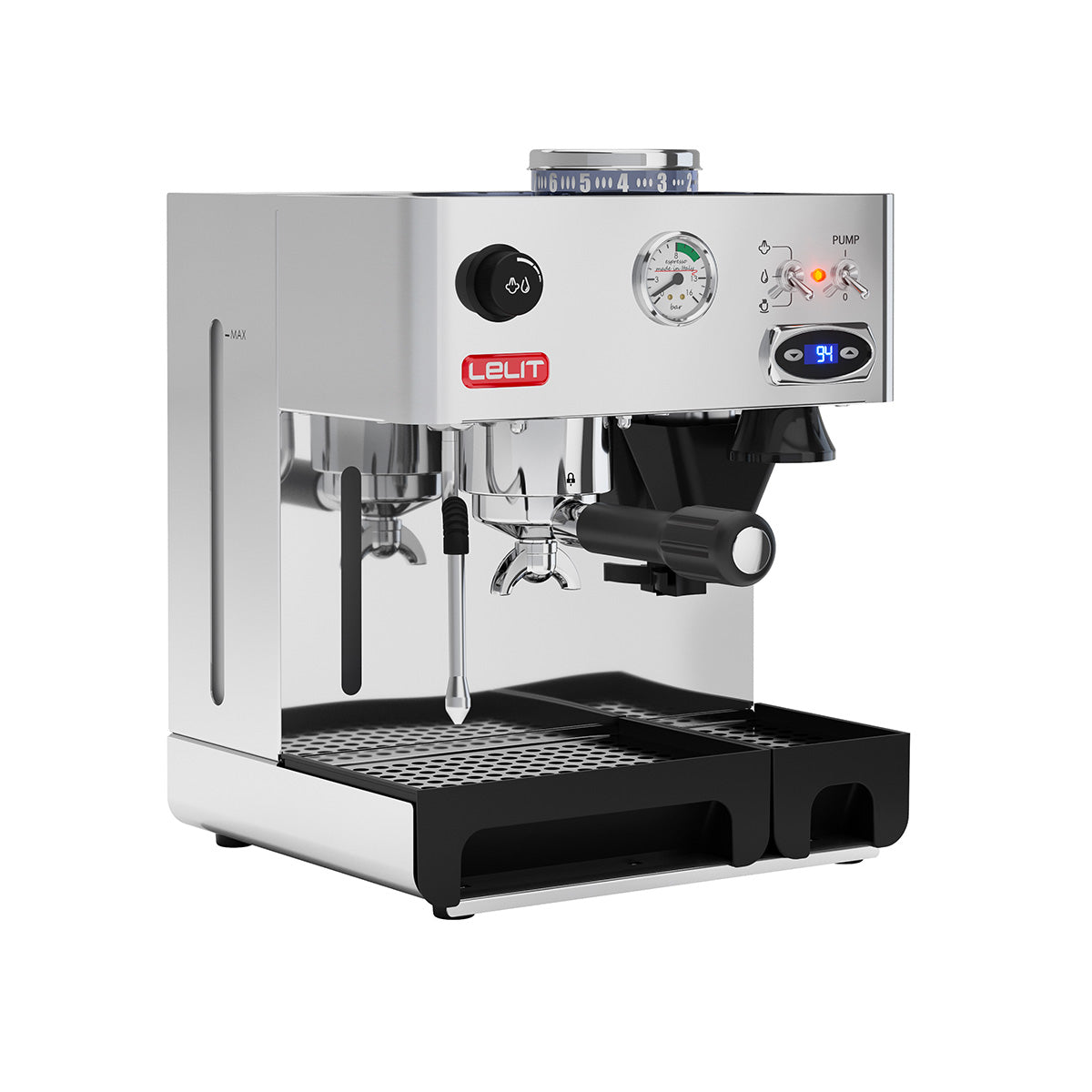

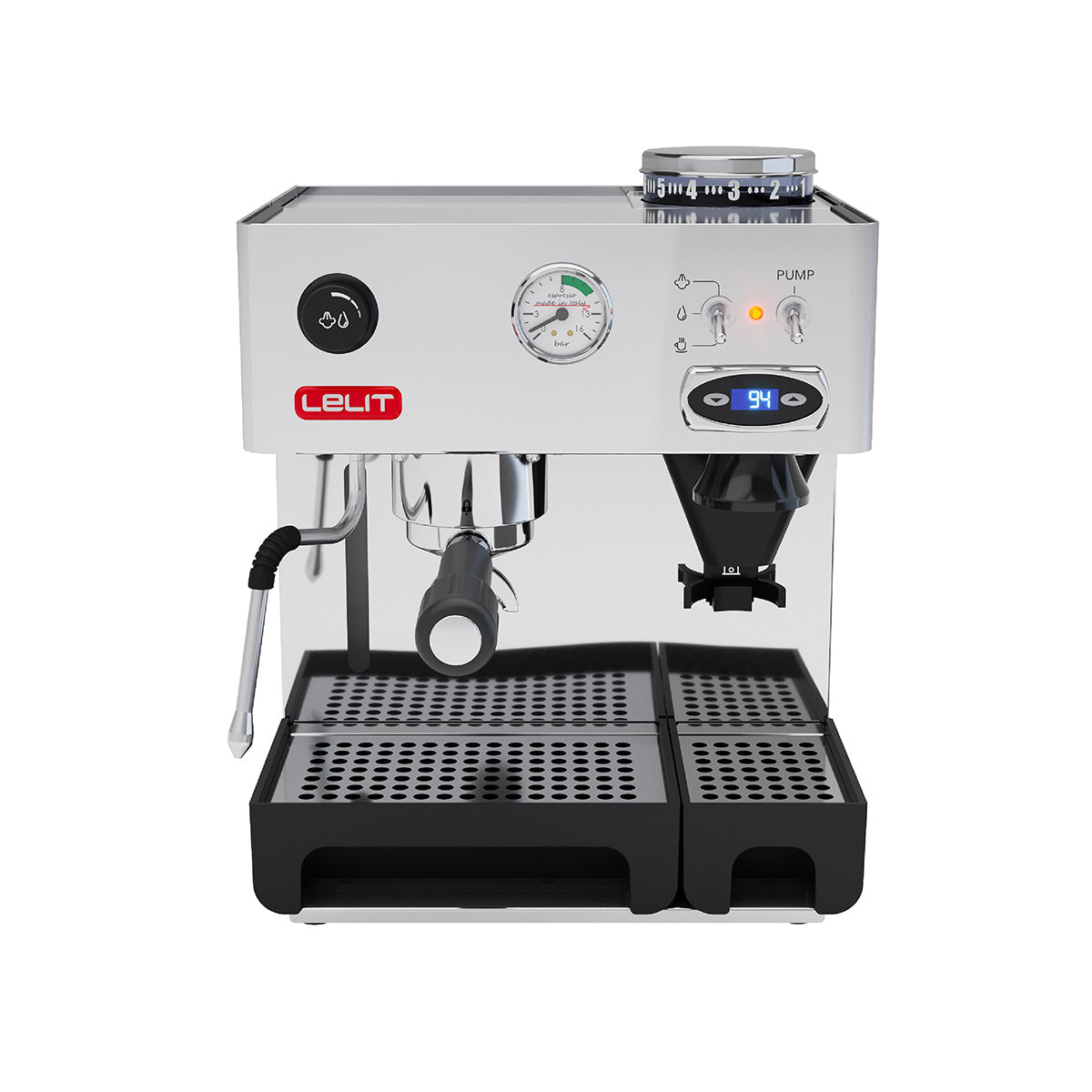

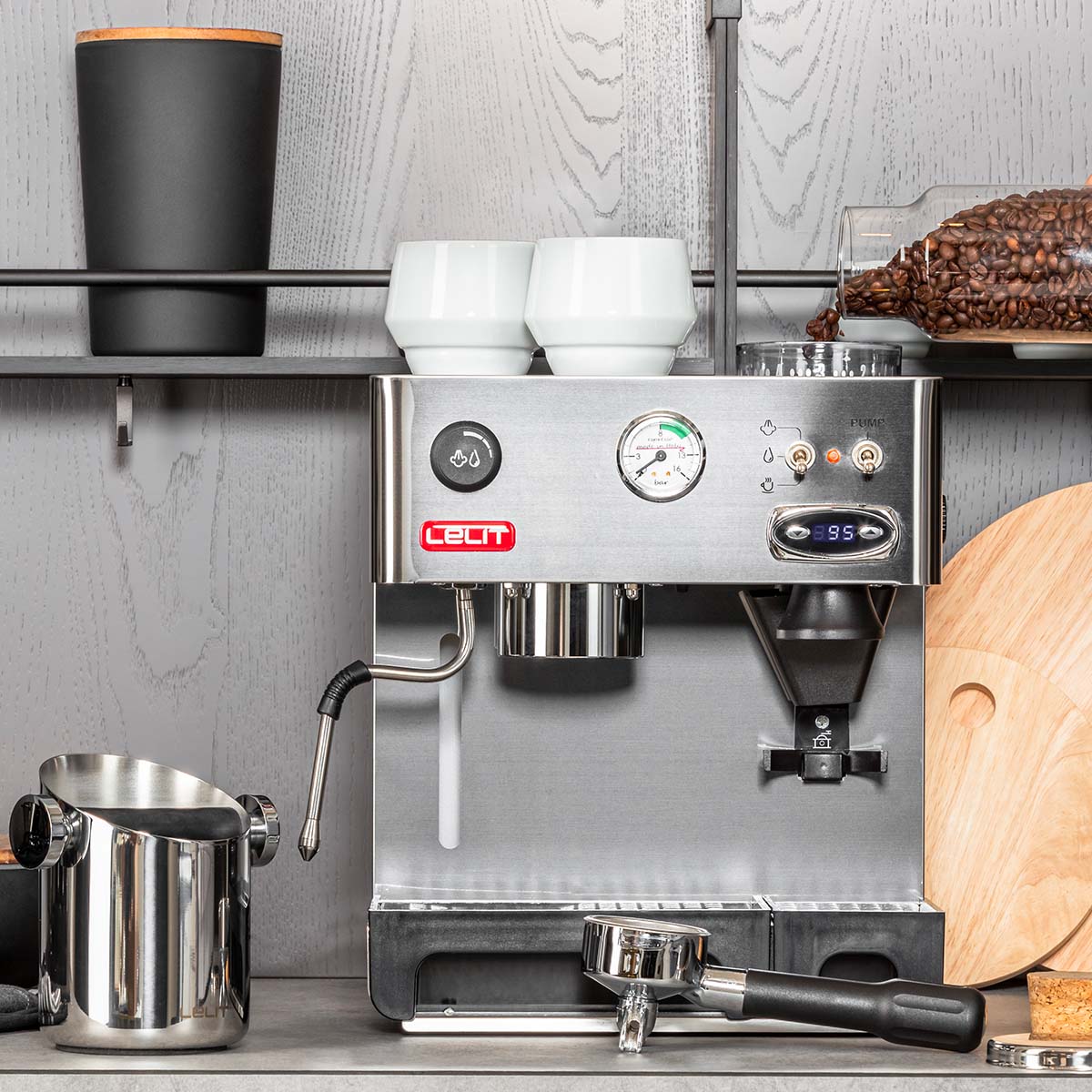

LELIT Espresso Machine - Anita PL042TEMD

• Integrated grinder: conical steel burrs Ø 38 mm, stepless micrometric adjustment via side wheel
• LELIT57 group (57 mm) in brass, compatible with LELIT57 tools
• Single brass boiler (250 ml)
• Dual PID (TermoPID): coffee and steam temperature regulation
• Integrated tamper
• 3-way solenoid valve: dry puck at the end of extraction
• Coffee pressure gauge, with optimal green zone
• Multi-directional stainless steel steam/hot water wand
• Lever switches
• Removable spent coffee drawer and drip tray
• Stainless steel body, cup warmer, cup tray grid
• 2.7 L water tank, visible from the side and front
• 15 bar vibratory pump
• Fast heating (approx. 3 minutes)

• Hot coffee beverages: Espresso, Double espresso
• Hot water
• Milk system: Steam wand

Single boiler: Espresso is brewed, then the machine switches to steam mode to texture the milk.

First Start-up

1. Fill the tank and pour the beans into the hopper.
2. Turn on the machine: the PID displays the rising temperature. Allow approximately 3 minutes for the first espresso, and about fifteen minutes for the group head and brass portafilter to reach their optimal temperature.
3. Run some water through the group head to fill and rinse the circuit before the first extraction.

Preparing an Espresso

1. Place the portafilter under the grinder outlet and grind on demand directly into the filter (or use pre-ground coffee / an ESE pod).
2. Tamp with the integrated tamper, clean the edge of the filter, then firmly lock the portafilter onto the group head.
3. Place the cup(s), activate the lever to start extraction; the pressure gauge needle should be in the green zone. Return the lever to stop.

Steam and Hot Water

• Single-boiler: after the espresso, switch to steam mode and wait for the boiler to heat up.
• Purge the nozzle for about 2 seconds to release condensation, froth the milk, then close and return to coffee mode.
• The multidirectional nozzle also dispenses hot water.

Maintenance

• Weekly: clean surfaces with a damp microfiber cloth; thoroughly clean the steam nozzle and portafilter after each use; empty the spent coffee grounds tray.
• Group Head: the 3-way solenoid valve allows for backflushing with a blind filter (not included).
• Grinder: clean with an appropriate burr cleaning product; it is not recommended to disassemble the burrs.

• Group: LELIT57 (57 mm) brass portafilter with 2 spouts
• Grinder: conical burrs Ø 38 mm, continuous micrometric adjustment (stepless)
• Bean hopper: 150gr
• Boiler: single brass boiler, 250 ml
• Control: double PID (coffee + steam)
• Pump pressure: 15 bar
• Water tank: 2.7 L
• Dimensions (W x D x H): 31.5 × 36.5 × 37 cm
• Weight: 10.2 kg
• Power supply: 230 V / 50 Hz (E+F plug)

Included accessories:LELIT57 portafilter with 2 spouts · 1-dose filter (7-9 g) · 2-dose filter (14-18 g) · ESE pod filter. (The tamper is integrated into the machine.)
